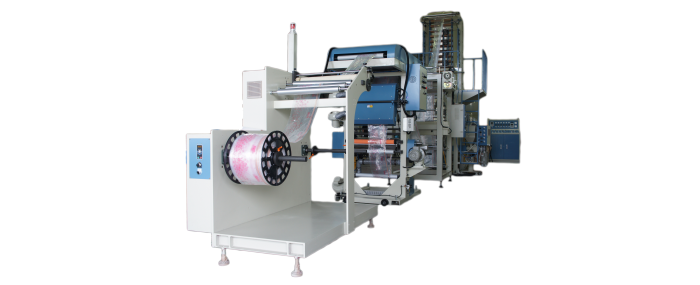

ZIPPER MACHINE
| Model | IZE-45 | IZE-55 |
|---|---|---|
| Suitable Material | LDPE | LDPE |
| Film Thickness | 0.05-0.1 | 0.05-0.1 |
| Maximum Film Width | 500 | 700 |
| Film Output | Depend on die size | Depend on die size |
| Extruder | ||
| Screw Diameter | 45 | 55 |
| Screw L/D Ratio | 28:1 | 28:1 |
| Heating Capacity | 12.6KW | 15KW |
| Auto Temperature Control | 4 | 4 |
| Barrel Cooling Fan | 2 | 2 |
| Driving Motor | 15HP | 25HP |
| Die | ||
| Die Diameter | As customer request | As customer request |
| Air Ring Diameter | 3pcs | 3pcs |
| Heating Capacity | 2.4KW | 3KW |
| Auto Temperature Control | 2 | 2 |
| Take-Up | ||
| Take-Up Roller | 620M/M | 820M/M |
| Effective Width | 500M/M | 500M/M |
| Take-Up Motor | 1/2 HP | 1/2HP |
| Winding | ||
| Roller Width | 750M/M | 750M/M |
| Winding Width | 500M/M | 700M/M |
| Winding Motor | 1/2HP frequency conversion torque motor | 1/2HP frequency conversion torque motor |
| Machine Dimension(L*W*H) | 7200*2220*4200 | 7800*2400*5400 |
