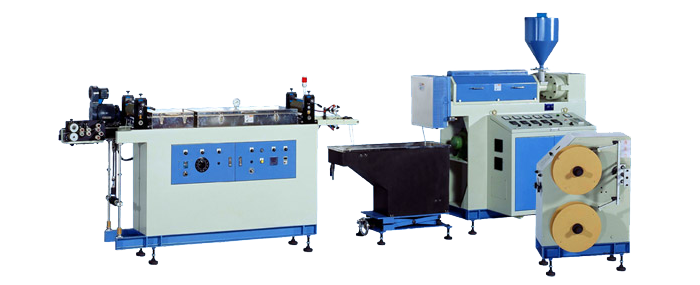

ZIPPER MACHINE
| Model | IZL-40 | IZL-45 | |
|---|---|---|---|
| Suitable Material | LDPE/PP | LDPE/PP | |
| Machine Size L*W*H (M) | 5.6*1.2*2.2 | 5.6*1.3*2.2 | |
| Range of Zipper Width (M/M) | 3~15*2 | 3~15*2 | |
| Maximum of Capacity (M/Min) | 30~40 | 30~40 | |
| Total Electric Capacity(KW) | 30 | 35 | |
| Extruder | |||
| Screw Diameter (M/M) | 40 | 45 | |
| Screw L/D Ratio | 28:1 | 28:1 | |
| Screw Material | SACM1 | SACM1 | |
| Barrel Material | SACM1 | SACM1 | |
| Heater Capacity on Barrel (KW) | 10 | 12 | |
| Temperature Control of Barrel (SET) | 3 | 3 | |
| Cooling on Barrel (SET) | 1 | 1 | |
| Driving Motor (HP) | 7.55 | 15 | |
| Heater Capacity on Die (KW) | 2.6 | 2.6 | |
| Temperature Control on Die (SET) | 1 | 1 | |
| Cooling Device | |||
| Cooling Tank | Stainless Steel | Stainless Steel | |
| Adjustment of Water Position | Driving | Driving | |
| Water Release | Air Cutter*4 | Air Cutter*4 | |
| Take-up Unit | |||
| Diameter of Take-up Roller (M/M) | 120 | 120 | |
| Take-up Roller Motor (HP) | 1 | 1 | |
| Dry System (SET) | 1 | 1 | |
| Guide Roller (M/M) | Dia.120*2 | Dia.120*2 | |
| Guide Roller Motor (HP) | 1/2*2 | 1/2*2 | |
| Winding Unit | |||
| Maximum Width on Winding (M/M) | Dia.240*2 | Dia.240*2 | |
| Maximum Diameter of Winding Roller (M/M) | Dia.450*2 | Dia.450*2 | |
| Winding Motor (HP) | 1/2*2 | 1/2*2 | |
